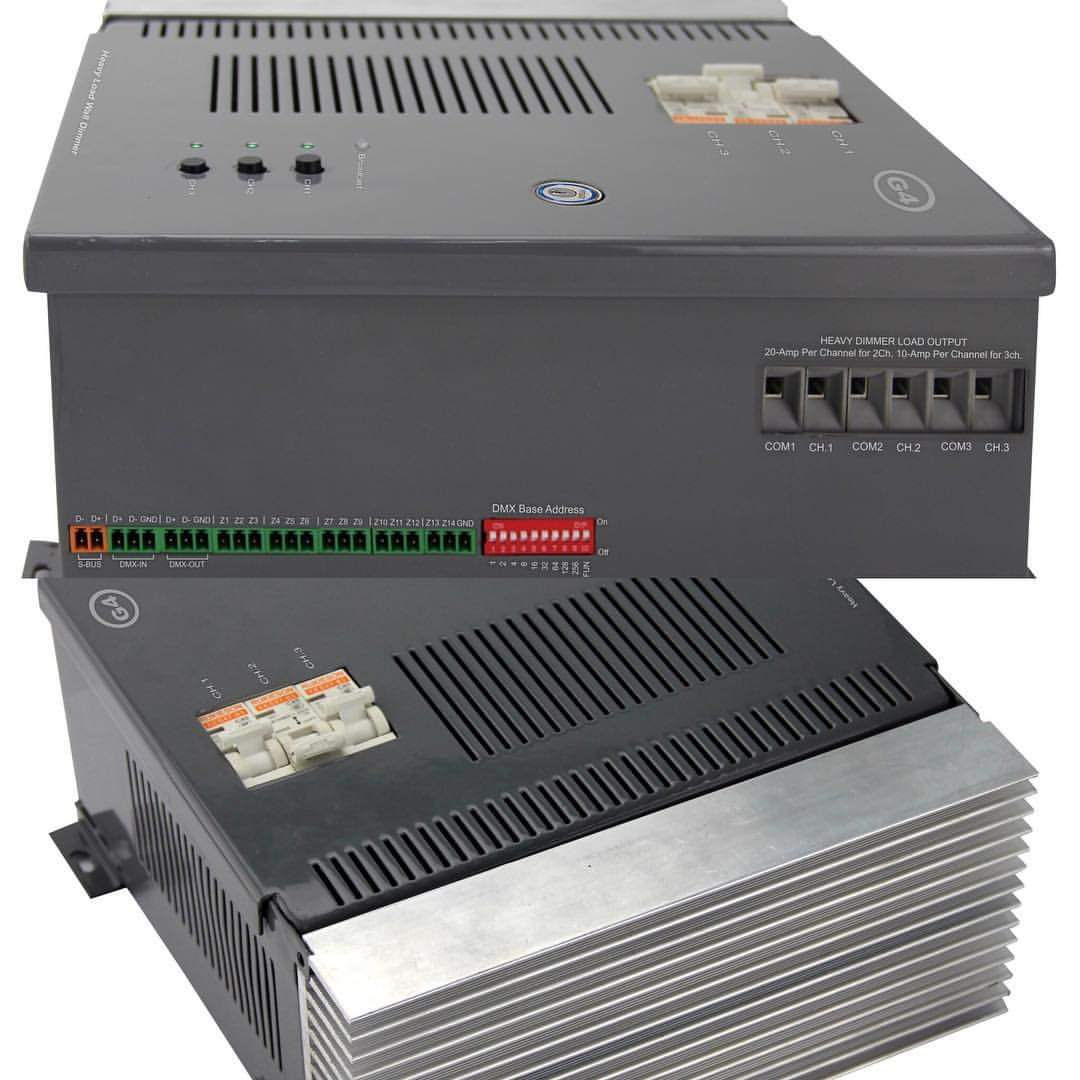

2DM Smart-Bus Heavy Load Dimmer 2ch 20A/ch, Wall Mount (G4s) - SB-DIM2c20A-WL
Description
WALL Mount Dimmer 2ch 20A /per ch. with Air Cushion Cut off Power, scene controller (Overheat, Overload, Surge Protection) single phase both 220/110 VAC, 50-60Hz (Green operated supplied by 24VAC/50mA) Internal Power Supply
Small Size 24HX20WX11D CM
output status LED indicator, network health, broadcast address button and Momentary channel button. Can be used in any location that require energy saving, intelligent control such as apartment, Villa, Offices, Restaurant, Hotels or factories. Can be Manually Programmed by any Electrician on site without need for PC.
Added Special Function:
Any Installer can use His Own Commanders To control or integrate to other third party with RS232 or RS485
** Optional DMX input Add on Card Can Be implemented
---------------------------------------------------------------------
Built In 14 Dry Contacts with Small Screw Terminals:
So Installer can use manual controls or manual buttons as needed to control or to integrate.
A
Channel 1 ON one touch, Keep Press = Ramp Up
Channel 1 off one touch, Keep Press = Dim DN
B
Dimmer Channel 1 Ramp Up only
Dimmer Channel 1 Dim DN only
C
Channel 2 ON one touch, Keep Press = Ramp Up
Channel 2 off one touch, Keep Press = Dim DN
D
Dimmer Channel 2 Ramp Up only
Dimmer Channel 2 Dim DN only
E
All Dimmers Off Preset
F
All Dimmers ON Preset
G
All Dimmers Preset1
H
All Dimmers Preset2
I
All Dimmers Preset 3
J
All Dimmers Preset4
K
Flexible Preset 1
L
Flexible Preset 2
M
Flexible Preset 3
N
Flexible Preset 4
Load Compatibility:
• Leading edge electronic transformers (Spot/Down Lights++)
• Incandescent lamps
• Track lighting
